Manual Valves, Ball Valves, Offset Disc Butterfly Valves, Butterfly Valves
Industrial Ball Valves
We are Manufacturer, Supplier, Exporter of Manual Valves, Ball Valves, Offset Disc Butterfly Valves, Butterfly Valves, Disc Check Valve Non Slam, Non Return Valve NRV Valves, Roto Seal Coupling Right Handed Thread, Left Handed Thread, High Pressure Needle Valves, Pressure Reducing Valves, PRV Valves from Pimpri, Chinchwad, Pune, Maharashtra, India and We serve worldwide, but majorly we serve our products to customers from Ludhiyana, Tamilnadu, Hydrabad, Gujrat, M.P, U.P, Delhi, Punjab, Rajasthan, Aasam, Bangal, Odisa, Telangana, Jalandhar and rest of ALL OVER INDIA.
Ball Valves are mechanical devices used to control the flow of fluids (liquids or gases) through a pipe or tubing system. They consist of a hollow, perforated ball with a hole (bore) in the center, which can be rotated to allow or block the flow of fluid.
| Model | : | ABV-M |
| Size | : | 15 NB to 600 NB |
| Class | : | 150# / 300# / 600# |
| MOC | : | WCB / CF8 / CF8M / CF3 / CF3M |
| Design | : | 1 PC / 2 PC / 3 PC |
| ENDS | : | Screwed / Socket Weld Flanged |
| Cast Iron / Cast Steel / Stainless Steel | ||
Advantages
• Quick and easy operation: Ball valves have a simple design
and can be quickly opened or closed with a quarter-turn of the handle or lever.
• Excellent shutoff capability: When closed, the ball valve
provides a tight seal, minimizing leakage and ensuring reliable shutoff.
• Versatile applications: Ball valves are suitable for a wide
range of applications and can handle various types of fluids, including corrosive chemicals, gases,
and liquids.
• Low maintenance: Ball valves typically require minimal
maintenance due to their durable construction and few moving parts.
• Wide temperature and pressure range: Ball valves are
available in different materials and configurations, allowing them to operate efficiently in
high-temperature and high-pressure environments.
Features
• Full bore or reduced bore:Ball valves can have a full bore
(large hole size) or a reduced bore (smaller hole size), depending on the desired flow capacity.
• Floating or trunnion-mounted ball:Ball valves can have a
floating ball design or a trunnion-mounted ball design, which affects their sealing and operating
characteristics.
• Manual or automated operation:Ball valves can be operated
manually with a handle or lever, or they can be automated using electric, pneumatic, or hydraulic
actuators for remote control.
• Various end connections: : Ball valves come with different
end connections, such as threaded, flanged, or welded ends, to suit specific piping systems.
Benefits
• Quick and efficient flow control: Ball valves provide fast
response times, allowing for precise control of fluid flow.
• Reliable sealing:The ball valve's sealing mechanism ensures a
reliable and tight shutoff, preventing leakage.
• Durability: Ball valves are typically made of robust
materials such as stainless steel, brass, or PVC, making them resistant to corrosion and capable of
withstanding harsh operating conditions.
• Versatility: Ball valves can be used in a wide range of
industries, including oil and gas, water treatment, chemical processing, and HVAC systems.
• Long service life: With proper installation and maintenance,
ball valves can have a long operational lifespan, contributing to cost savings and system
reliability.
Off - Set Disc Butterfly Valve
| Model | : | AOBV - H / AOBV - G |
| Body | : | CF8 / CF8M / WCB |
| Disc | : | CF8 / CF8M |
| Seat | : | PTFE |
| Gland | : | PTFE |
| Temp | : | 180 °C |
| Operation | : | Hand Lever / Worm Gear |

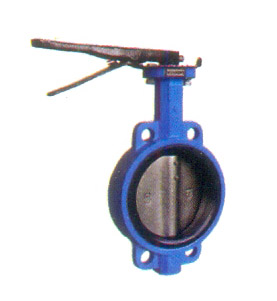

Butterfly Valves
A Butterfly Valves is a quarter-turn valve that uses a disc or plate with a rod through its diameter to control the flow of fluids. When the disc is rotated perpendicular to the flow, it creates a tight seal, and when rotated parallel to the flow, it allows fluid passage.
| Model | : | ABFV |
| End | : | Wafer |
| Lining | : | Nitrile |
| Operation | : | Leaver & Gear Operated |
| Size | : | 40 NB to 500 NB |
Advantages
• Lightweight and compact design: Pneumatic valves offer fast actuation and response times, allowing for rapid control and adjustment of pneumatic systems.
• Quick operation: Pneumatic valves can generate significant force and torque, making them suitable for applications requiring strong actuation.
Simple design and installation: Pneumatic valves have a straightforward design, making them easy to install, operate, and maintain.
• Cost-effective:Butterfly valves are generally more affordable compared to other valve types, making them a cost-effective choice for large-scale applications.
• Good flow control:Pneumatic valves are generally more affordable compared to their hydraulic or electric counterparts, making them a cost-effective solution for many applications.
• Low-pressure drop: Pneumatic valves do not generate heat or sparks, making them suitable for use in hazardous environments where the presence of flammable substances is a concern.
Features
• Disc types: Butterfly valves can have different types of discs, such as concentric, eccentric, or double-offset, to suit various applications and flow conditions.
• Manual or automated operation:Butterfly valves can be manually operated or automated using handles, levers, pneumatic or electric actuators, providing flexibility in control options.
• Bi-directional flow: Butterfly valves are capable of handling flow in both directions, making them versatile for applications requiring bidirectional flow control.
• Size range: Butterfly valves come in a wide range of sizes, from small diameters for residential applications to large diameters for industrial use.
Benefits
• Versatility:Butterfly Valves are suitable for a variety of applications and industries, including water treatment, HVAC systems, chemical processing, and food and beverage industries.
• Low maintenance:With fewer components and a simple design, butterfly valves require minimal maintenance, reducing downtime and operating costs.
• Space-saving: The compact design of butterfly valves makes them ideal for applications where space is limited.
• Bubble-tight sealing: When closed, butterfly valves provide a tight seal, minimizing leakage and ensuring reliable shutoff.
• High flow capacity: Butterfly Valves have a large flow capacity, allowing for efficient flow control in pipelines with high flow rates.
Disc Check Valve Non Slam
| Model | : | ADCV |
| Size Range | : | 1/2" to 8 |
| Body | : | CF8 / CF8M |
| Disc | : | S.S. 304 / S.S. 316 |
| Disc Seat | : | Metal to Metal |
| Spring | : | Standard |
| Max.Oper.Press. | : | PN - 40 |
| Max.Oper.Temp. | : | Upto 300 °C |

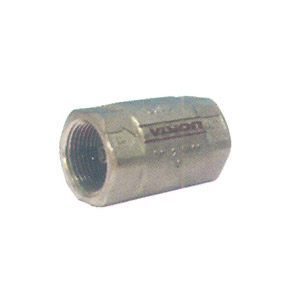

Non Return Valve (NRV)
| Model | : | ANRV - U |
| Body | : | CF8 / CF8M |
| Size | : | ½" to 2" |
| Pressure | : | Upto 3000psi |
| Temp. | : | 125°C |
| Media | : | Air, Gas, Water, Oil |

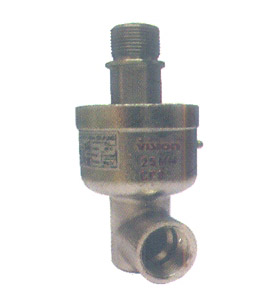

Roto Seal Coupling (Right / Left Handed Thread)
| Model | : | ARC |
| Size | : | 1/4" to 2" BSP |
| Body | : | S. Steel / WCB |
| Shaft | : | S. Steel |
| Pressure | : | Upto 10 Kg/cm2 |
| Media | : | Air, Water, Oil & Gas |

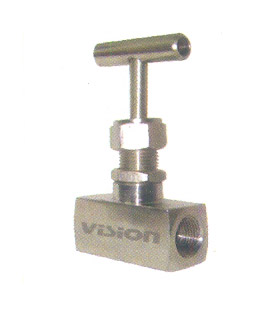

High Pressure Needle Valve
| Model | : | AHNV |
| Size Range | : | 1/4", & 2" BSP / NPT |
| Body | : | S.S. |
| Pressure | : | 1000 psi / 5000 psi / 10000 psi |
| Temp. | : | 80°C |
| Media | : | Air, Water, Oil & Gas |
Pressure Reducing Valve (PRV)
| Model | : | ARS - APRV |
| Size | : | 1/2" to 2" |
| Ends | : | Screwed / Flanged |
| Body | : | S.S. 304 / S.S. 316 |
| Press. Adjesting Range | : | 1 ~ 6 Kgf/cm2
4 ~ 10 Kgf/cm2 20 ~ 35 Kgf/cm2 |
| Max. Inlet Press. | : | 18 Kgf/cm2, 40 Kgf/cm2 |
| Media | : | Water, Air,Gas, Oil & Stream |
| Temperature | : | -15°C ~ 85°C , 220°C |
Location Area : Ludhiyana, Tamilnadu, Hydrabad, Gujrat, M.P, U.P, Delhi, Punjab, Rajasthan, Aasam,
Bangal, Odisa, Telangana, Jalandhar.
Sector : Energy Plants, Oil Plants, Water Treatment Plants, Sugar Factories, Chemical Industries, Process Industries, Pharma Industries, Food Industries, Distillery plants etc.
Sector : Energy Plants, Oil Plants, Water Treatment Plants, Sugar Factories, Chemical Industries, Process Industries, Pharma Industries, Food Industries, Distillery plants etc.
