Automation Valves
We are Manufacturer, Supplier, Exporter of Automation Valves, Pneumatic Angle Type Control Valves, 2/2, 3/2 Way Pneumatic Angle Type ON/OFF Control Valves, Pneumatic Butterfly Valves, Butterfly Valve with Pneumatic Rotary Actuators / Butterfly Valve With Pneumatic Actuator, Diaphragm Control Valves, Pneumatic Diaphragm Operated Control Valves, 2/2, 3/3 Pneumatic Diaphragm Operated Control Valves, Diaphragm Type Solenoid Valves, Diaphragm Operated Solenoid Valves, 3 Pc. Ball Valve with Pneumatic Rotary Actuator, Pneumatic Actuated 3 Piece Ball Valves, Offset Disc Butterfly Valve With Pneumatic Rotary Actuator, Pulse Jet Solenoid Valves, Dust Collector Pulse Jet Solenoid Valves, Pulse Jet Valves, Low Pressure Diaphragm Type Solenoid Valves, Pune, Pimpri Chinchwad, Maharashtra, Ludhiyana, Tamilnadu, Hydrabad, Gujrat, Madhya Pradesh, Uttar Pradesh, Delhi, Punjab, Rajasthan, Aasam, Bangal, Odisa, Telangana, Jalandhar, India.

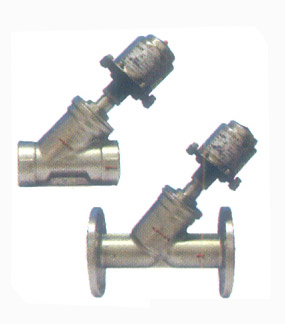

2/2 Way Pneumatic Angle Type ON/OFF Control Valves
| Model | : | AYCV-S / AYCV-F |
| Type | : | Normally Close / Open |
| Size Range | : | 1/2" to 3" |
| Body | : | CF8 / CF8M |
| Pneu. Press. | : | 3.5 to & 7 Bar |
| Working Press. | : | Upto 16 Bar |
| Working Temp. | : | 180 °C |
| Ends | : | Screwed / Flanged |
| Media | : | Air, Water, Oil, Gas Stream & Camicals |
Butterfly Valve with Pneumatic Rotary Actuator
| Model | : | ABFV |
| Actuator | : | Single / Double Acting |
| Size Range | : | 1.1/2" to 20" |
| Valve Body | : | Cast Iron |
| Disc | : | C.I. / CF8 / CF8M |
| Seals | : | Nitrile |
| Pressure Rating | : | PN 10 (Max.) |
| Oper.Temp.Range | : | 70 °C |

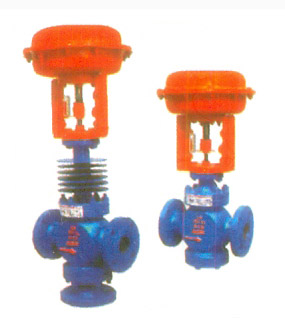

2/2 & 3/3 Pneumatic Diaphragm Operated Control Valves
| Model | : | ACLD-220 / ACHD-450 |
| Type | : | Diaphragm Type Thermic Fluid Control Valves |
| Size Range | : | 1" to 8" |
| Body & End Piece | : | WCB / S.S. |
| Diaphragm | : | Polyurethane |
| Diaphragm Cover | : | Sheet, Metal, Pressing |
| Working Press. | : | 150# |
| Working Temp. | : | Upto 450 °C |
| Seating | : | Metal to Metal |
| Media | : | Thermic Fluid |
Diaphragm Type Solenoid / Diaphragm Operated Solenoid Valves
| Model | : | ASD |
| Actuator | : | Diaphragm Type Internal Pilot Operated |
| Type | : | Normally Close / Open |
| Size Range | : | ½" to 2" |
| Body | : | CF8 |
| Diaphragam | : | Nitrile |
| Pressure | : | 0.5 to 10 Bar |
| Temperature | : | Upto 85 ℃ |
| Ends | : | Screwed / Flanged / Tricolver |
| Media | : | Air, Water, Oil, Gas, Vacwm, etc |
| Available Volt. | : | All std. voltage available |
3 Piece Ball Valve with Pneumatic Rotary Actuator
| Model | : | ABV-S / ABV-F |
| Actuator | : | Single / Double Acting |
| Size Range | : | ½" to 6" |
| Ball Valve | : | 3 Piece Design |
| MOC | : | CF8 / CF8M / WCB C.S / P.P |
| Ends | : | Screwed / Flanged Socket Weld |
Offset Disc Butterfly Valve With Pneumatic Rotary Actuator
| Model | : | AOBV |
| Actuator | : | Single Acting / Double Acting |
| Size Range | : | 1.½" to 12" |
| Valve Body | : | CF8 / CF8M / WCB |
| Disc | : | CF8 / CF8M |
| Seat | : | PTFE |
| Mounting | : | Universal |
| Press. Rating | : | ANSI 150# |
| Opr. Temp | : | 180 °C |
Pulse Jet Solenoid / Dust Collector Pulse Jet Solenoid Valves
| Model | : | APJV |
| Size Range | : | 1" to 1½" |
| Body | : | Aluminium Die Cast |
| Diaphragm | : | Canvas / Nitrile / PU |
| Press. | : | 0.6 to 10 Bar |
| Temp. | : | 80 °C / 125 °C / (Upto 125 °C on request) |
| Available Volt. | : | All std. voltage available |
Low Pressure Diaphragm Type Solenoid Valves
| Model | : | ASDL |
| Actuation | : | 2 Way Piston Type Internal Pilot Operated |
| Type | : | Normally Close / Open |
| Size Range | : | 1/2" to 2" |
| Body | : | CF8 |
| Seals | : | Teflon |
| Pressure | : | 8PSI to 180PSI / 280PSI / 1500PSI |
| Temperature | : | Upto 180 °C |
| Ends | : | Screwed / Flanged / Tricolver |
| Media | : | Steam / Hot Water / High Temp. Fluids |
| Available Volt. | : | All std. voltage available |
Location Area :Ludhiyana, Tamilnadu, Hydrabad, Gujrat, M.P, U.P, Delhi, Punjab, Rajasthan, Aasam, Bangal, Odisa, Telangana, Jalandhar.
Sector : Energy Plants, Oil Plants, Water Treatment Plants, Sugar Factories, Chemical Industries, Process Industries, Pharma Industries, Food Industries, Distillery plants etc.
